風冷加水冷柱塞泥漿泵
點擊：0 發布時間：2021-09-06 11:32:25

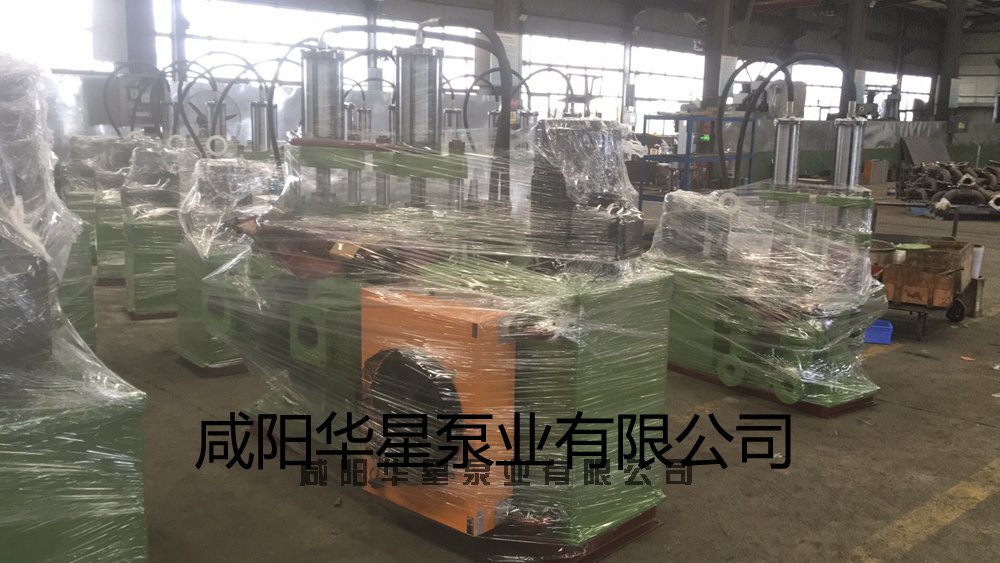

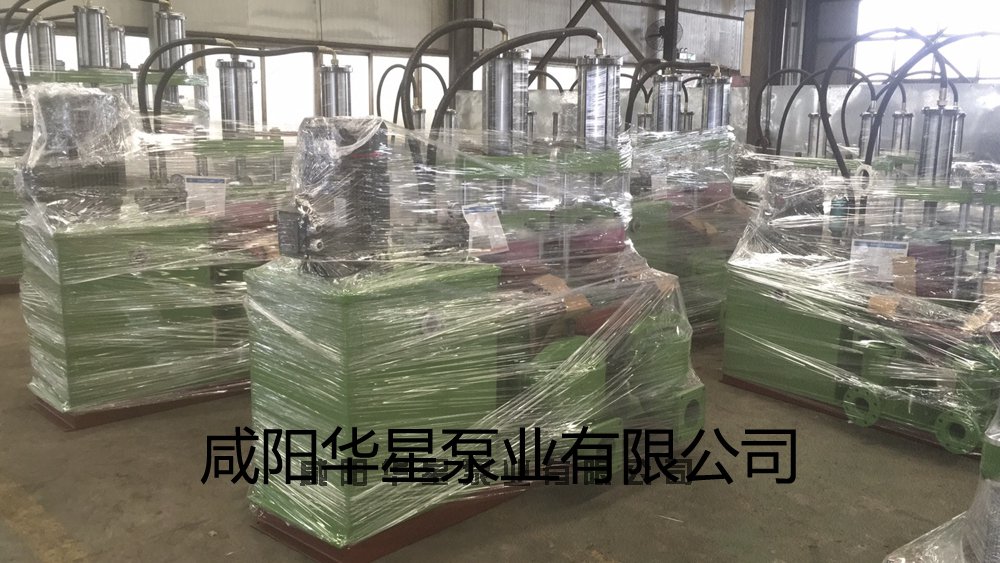

風冷加水冷柱塞泥漿泵
風冷加水冷柱塞泥漿泵
| YB系列陶瓷柱塞泵參數 | |||||||
| 型號 |
額定流 量M³/H |
壓力范圍 MPA |
額定壓力 MPA |
沖程 MM |
配用電機 KW |
外形尺寸 長*寬*高（M） |
進/出漿法蘭 PN16 |
| YB85-2.8 | 2.8 | 0-2.5 | 2 | 220 | 4 | 1.29*1.05*1.5 | DN50/DN40 |
| YB120-7.1 | 7.1 | 0-2.5 | 2 | 250 | 5.5/7.5 | 1.6*1.15*1.6 | DN80/DN65 |
| YB140-10 | 10 | 0-2.5 | 2 | 250 | 7.5/11 | 1.6*1.2*1.6 | DN80/DN65 |
| YB200-19 | 19 | 0-2.5 | 2 | 250 | 18.5 | 1.7*1.3*1.9 | DN100/DN80 |
| YB250-30 | 30 | 0-2 | 1.8 | 250 | 22 | 1.94*1.6*2.2 | DN125/DN100 |
| YB300-40 | 40 | 0-2 | 1.8 | 250 | 30 | 2.1*1.8*2.2 | DN125/DN125 |
| YB300J-60 | 60 | 0-1.5 | 1.2 | 350 | 37 | 2.1*1.8*2.32 | DN150/DN150 |
| YB300J-60 | 60 | 0-2.0 | 1.8 | 350 | 45 | 2.1*1.8*2.32 | DN150/DN150 |
| YB400-80 | 80 | 0-1.8 | 1.6 | 350 | 55 | 2.48*2.5*2.6 | DN150/DN150 |
| YB400-100 | 100 | 0-1.5 | 1.2 | 350 | 55 | 2.48*2.5*2.6 | DN150/DN150 |
| YB400-120 | 120 | 0-1.2 | 1 | 350 | 55 | 2.48*2.5*2.6 | DN150/DN150 |
